Product Detail

Single Door
150kg Max. Weight per leaf
End Caps – x2
Stops – x2
Floor Guide – x1
Carrier – x2

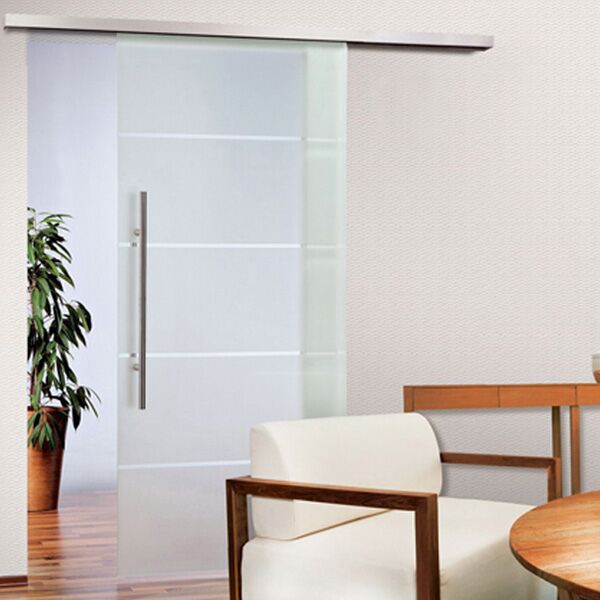

Our new UG sliding glass door system, which covers a wide range of applications and includes options such as soft-close and synchro-opening/closing.

EN 1527 approved – tested to 100,000 cycles ensuring long durability with silent movement
One adjustable screw for +/-1/8 (3.5mm) height adjustment and the anti-failing in front system
A single track that is suitable for wall, ceiling and glass mounted applications
Made to measure carriage and track length, cutting options available

Create a sliding door system that suits each project requirement with our technical advisors, from a rubber stopper to hydraulic soft closing stopper or synchronized double door system, we are here to help. The UG sliding door system is ideal for a range of uses in offices, living spaces and pocket doors, designed with no visible clamping as the parts are hidden within the compact tracking.

We recommend a maximum height-to-width ratio of 2.5:1 to ensure the door’s centre of gravity is well-balanced.
