Product Detail

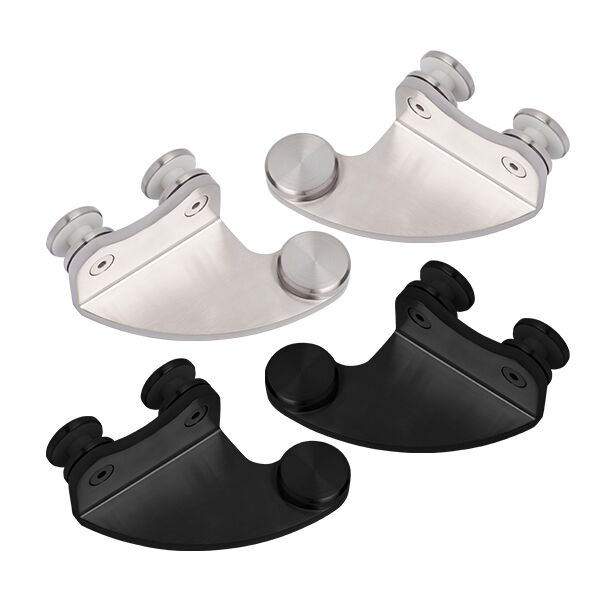

HUSH – Quiet movement patch fittings, to suit a H profile drop down seal
Suitable for glass-to-glass applications
Can be installed so that a glass door in a glass wall can swing 180degrees

When fitting HUSH fittings to double doors, please note the following.
• When doors 800mm each, gap at closed position needs to be 11mm
• When doors 850mm each, gap at closed position needs to be 10.5mm
• When doors 900mm each, gap at closed position needs to be 10mm
• When doors 950mm each, gap at closed position needs to be 9.5mm
• When doors 1000mm each, gap at closed position needs to be 9mm

Cut out details for the top & bottom patch fittings are the same, this is not an error. The deduction from bottom is to accommodate the H profile drop seal of 21mm is offset exactly by the 21mm height extension.
